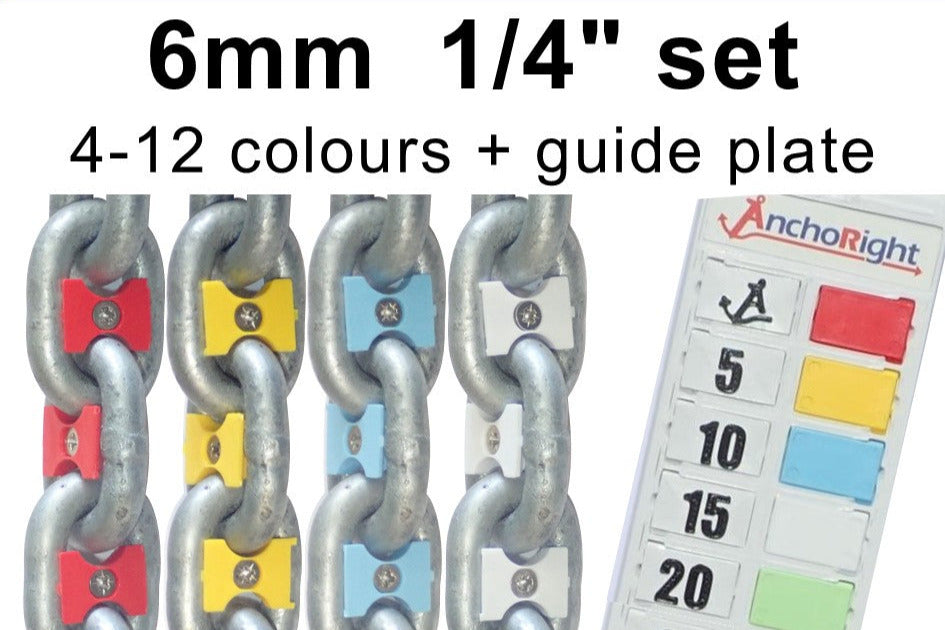

6mm 1/4" chain marking set
-
-
Tough and durable...
Anchoright's anchor chain markers' unique patent-pending design, marine-grade screw and tough water-resistant polymer body ensure they will stay secured in place and last many seasons.
Simply fit and forget.
-
Fitting the set is easy...
- No chain preparation required, simply secure the chain markers in place using a screw driver.
- Guide plate (included) is assembled with a patent-pending push-click system, no tools required.
Shipping
Shipping
Shipping is based on weight and destination and is calculated at checkout. Services used are:
UK - Royal Mail Tracked 48
Overseas - Royal Mail international tracked
UK next day delivery - If you are based in the UK and need the markers urgently we can ship on next day delivery. Please call on 01202 070916 for this service.
Couldn't load pickup availability

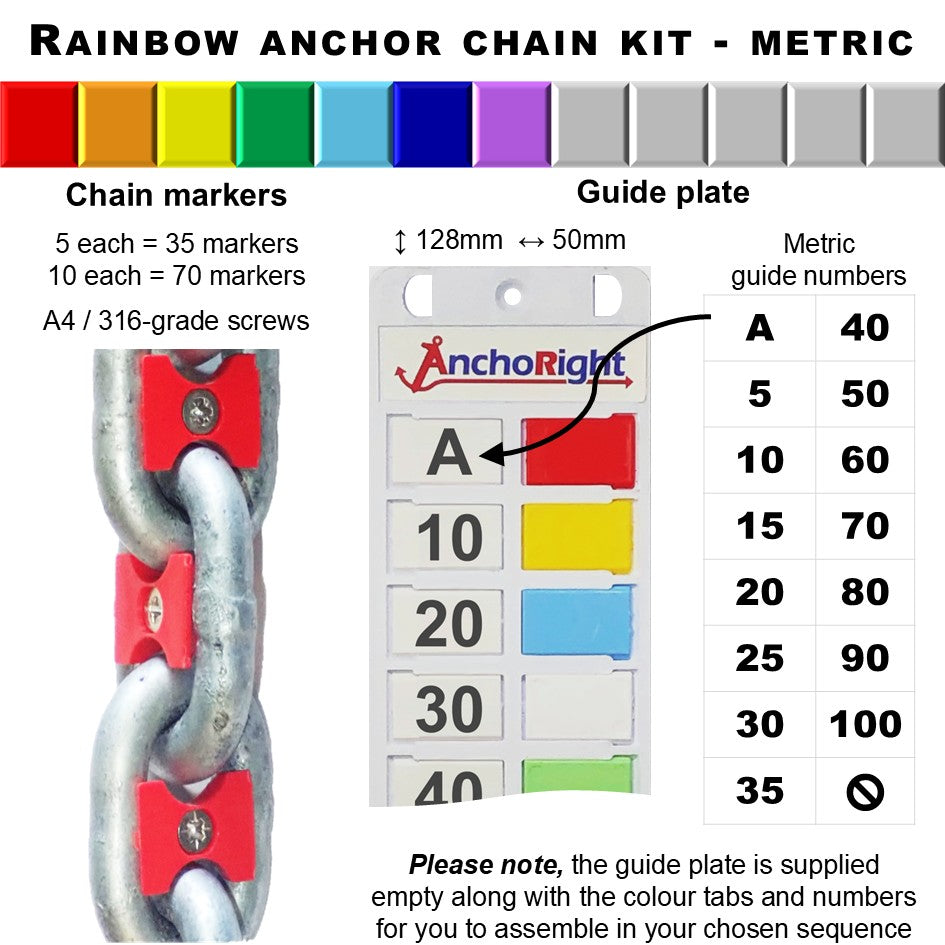

Chain marking sequences
The below table gives recommended sequences for marking your chain with the final column showing number of colours you would need for that sequence.
The "A" for the Anchor (Red) should be placed about 1-2 meters from the anchor so when it is about to reach the boat you can position it correctly, clean it if necessary and slow down retrieval so as not to slam it up onto the boat.
The "STOP" in placed near the end of the chain so the markers come out of the windlass just before the chain locks tight (assuming you have it attached to the boat!)
| Chain length | Red | Yellow | Light Blue |
White | Light Green |
Pink | Orange | Royal Blue |
Ivory | Forest Green |
Magenta | Auburn | Purple | Brown | Olive | Colours in set |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25m | A | 5 | 10 | 15 | 20 | STOP | → | 6 | ||||||||
| 30m | A | 5 | 10 | 15 | 20 | 25 | STOP | → | 7 | |||||||
| 35m | A | 5 | 10 | 15 | 20 | 25 | 30 | STOP | → | 8 | ||||||
| 36-40 | A | 5 | 10 | 15 | 20 | 30 | STOP | → | 7 | |||||||
| 41-50 | A | 5 | 10 | 15 | 20 | 30 | 40 | STOP | → | 8 | ||||||
| 51-60 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | STOP | → | 9 | |||||
| 61-70 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | STOP | → | 10 | ||||
| 71-80 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | STOP | → | 11 | |||
| 81-90 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | STOP | → | 12 | ||
| 91-100 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | STOP | → | 13 | |
| 101-110 | A | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | STOP | → | 13 | |
| 111-120 | A | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | STOP | → | 14 |
