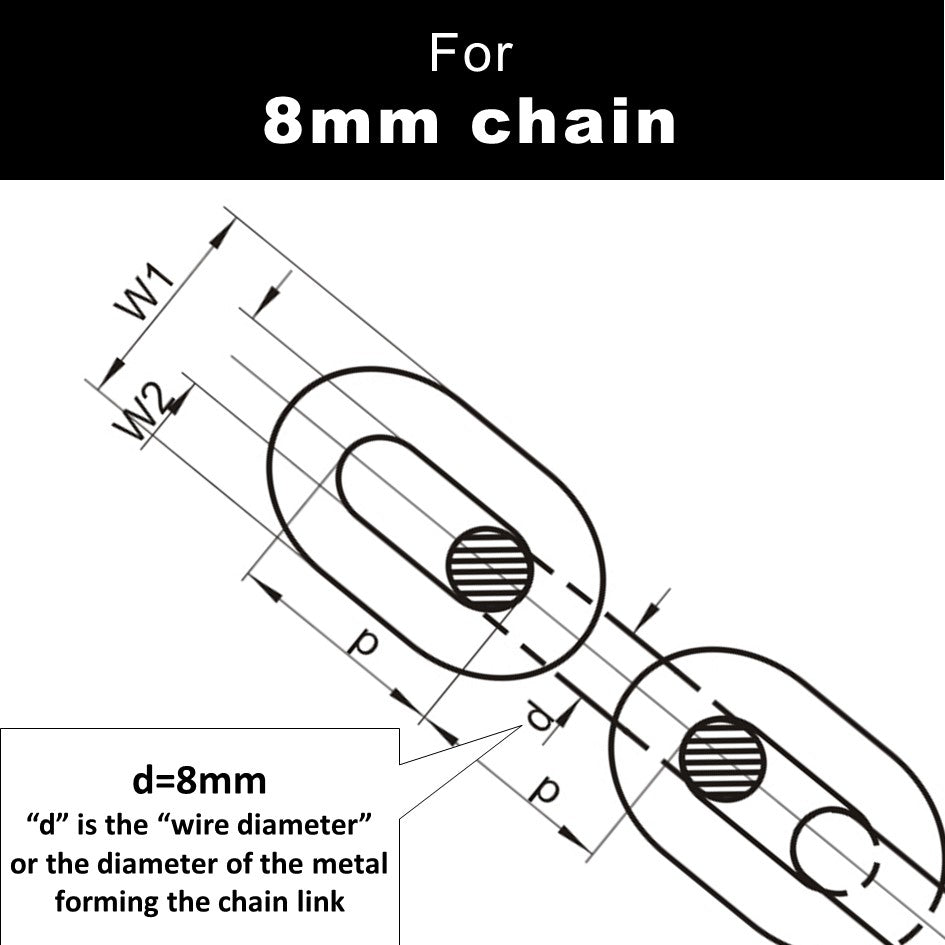

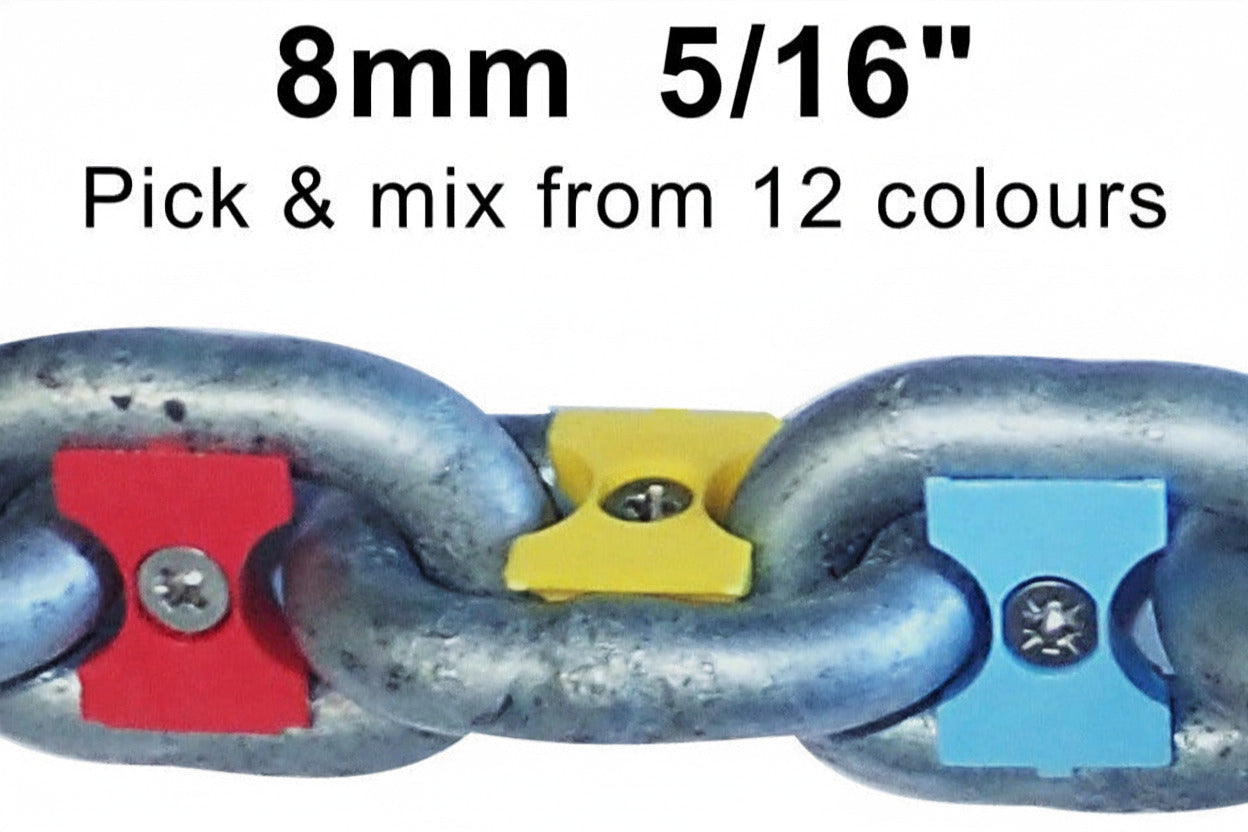

8mm 5/16" chain markers - individual colours
-
-
Tough and durable...
Our chain markers' unique patent-pending design, tough water-resistant polymer body held in place with a 316 stainless steel screw ensures they will stay secured in place and last many seasons whatever environment they're used in.
Simply fit and forget.
-
Fitting the set is easy...

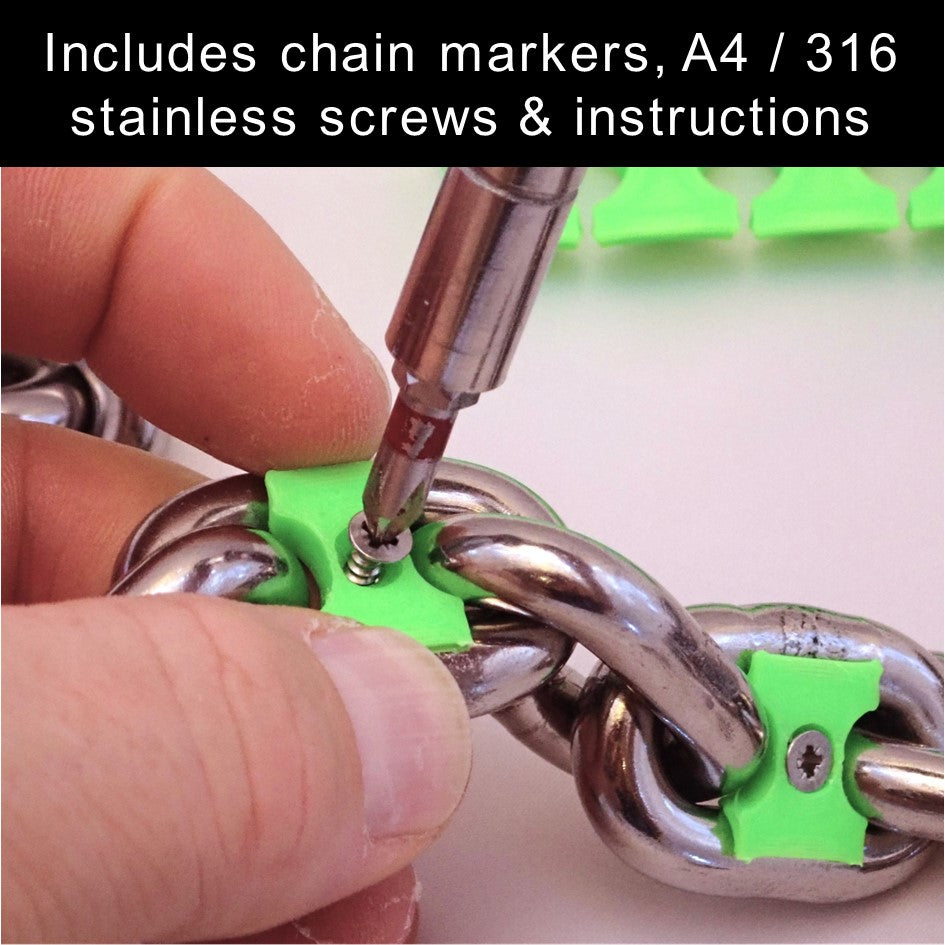

- No chain preparation required, simply secure the chain markers in place using a screw driver. 316 stainless steels screws are included.
- The optional guide plate (bottom of page) is assembled with a patent-pending push-click system, no tools required.
Couldn't load pickup availability

Chain marking sequences
The below table gives recommended sequences for marking your chain with the final column showing number of colours you would need for that sequence.
The "A" for the Anchor (Red) should be placed about 1-2 meters from the anchor so when it is about to reach the boat you can position it correctly, clean it if necessary and slow down retrieval so as not to slam it up onto the boat.
The "STOP" in placed near the end of the chain so the markers come out of the windlass just before the chain locks tight (assuming you have it attached to the boat!)
| Chain length | Red | Yellow | Light Blue |
White | Light Green |
Pink | Orange | Royal Blue |
Ivory | Forest Green |
Magenta | Auburn | Purple | Brown | Olive | Colours in set |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25m | A | 5 | 10 | 15 | 20 | STOP | → | 6 | ||||||||
| 30m | A | 5 | 10 | 15 | 20 | 25 | STOP | → | 7 | |||||||
| 35m | A | 5 | 10 | 15 | 20 | 25 | 30 | STOP | → | 8 | ||||||
| 36-40 | A | 5 | 10 | 15 | 20 | 30 | STOP | → | 7 | |||||||
| 41-50 | A | 5 | 10 | 15 | 20 | 30 | 40 | STOP | → | 8 | ||||||
| 51-60 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | STOP | → | 9 | |||||
| 61-70 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | STOP | → | 10 | ||||
| 71-80 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | STOP | → | 11 | |||
| 81-90 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | STOP | → | 12 | ||
| 91-100 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | STOP | → | 13 | |
| 101-110 | A | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | STOP | → | 13 | |
| 111-120 | A | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | STOP | → | 14 |
Anchoright Ltd
Guide plate
