10mm 3/8in chain markers - individual colours
-
-
Tough and durable...
Anchoright's anchor chain markers' unique patent-pending design, marine-grade screw and tough water-resistant polymer body ensure they will stay secured in place and last many seasons.
Simply fit and forget.
-
Fitting the set is easy...

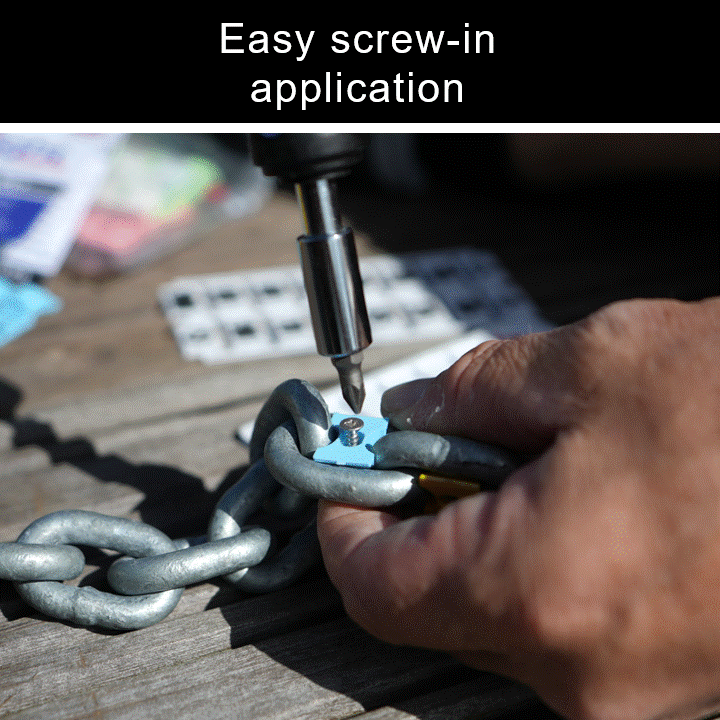

- No chain preparation required, simply secure the chain markers in place using a screw driver.
- The optional guide plate (bottom of page) is assembled with a patent-pending push-click system, no tools required.

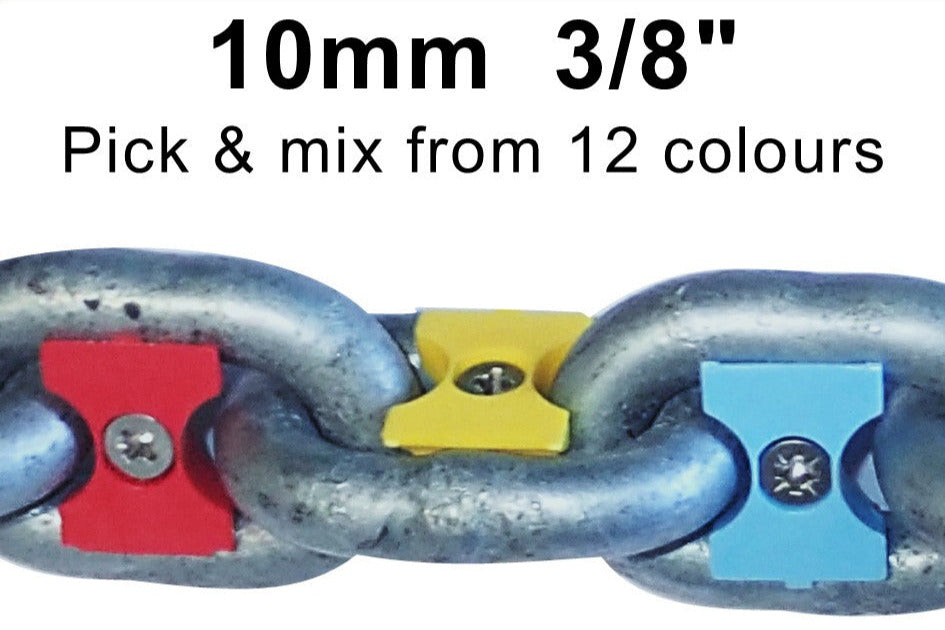

Choose from 12-colours of 10mm 3/8" chain markers

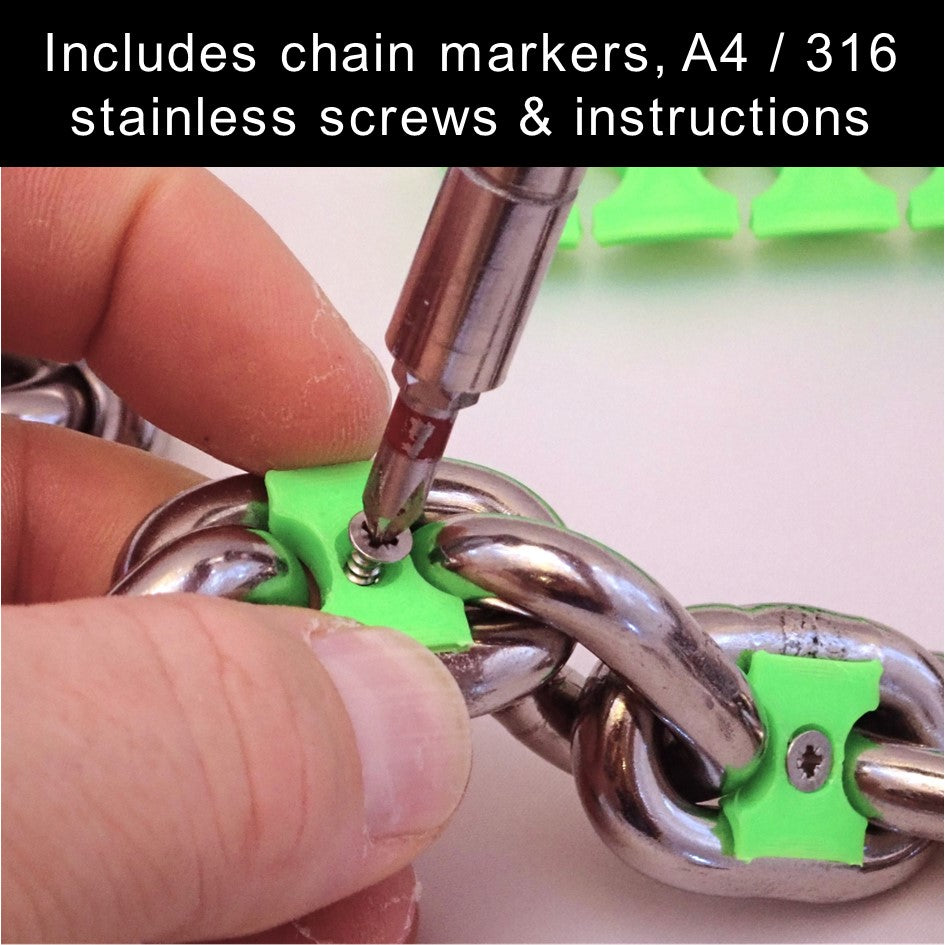

- Screw-in chain markers (5 of each colour)
- Marine grade 316 stainless steel screws (+5 spares)
- Fitting instructions
Shipping
Shipping
Shipping is based on weight and destination and is calculated at checkout. Services used are:
UK - Royal Mail Tracked 48, orders over £70 free shipping
Overseas - Royal Mail international tracked
UK next day delivery - If you are based in the UK and need the markers urgently we can ship on next day delivery. Please call on 01202 070916 for this service.
Couldn't load pickup availability
Chain marking sequences
The below table gives recommended sequences for marking your chain with the final column showing number of colours you would need for that sequence.
The "A" for the Anchor (Red) should be placed about 1-2 meters from the anchor so when it is about to reach the boat you can position it correctly, clean it if necessary and slow down retrieval so as not to slam it up onto the boat.
The "STOP" in placed near the end of the chain so the markers come out of the windlass just before the chain locks tight (assuming you have it attached to the boat!)
| Chain length | Red | Yellow | Light Blue |
White | Light Green |
Pink | Orange | Royal Blue |
Ivory | Forest Green |
Magenta | Auburn | Purple | Brown | Olive | Colours in set |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25m | A | 5 | 10 | 15 | 20 | STOP | → | 6 | ||||||||
| 30m | A | 5 | 10 | 15 | 20 | 25 | STOP | → | 7 | |||||||
| 35m | A | 5 | 10 | 15 | 20 | 25 | 30 | STOP | → | 8 | ||||||
| 36-40 | A | 5 | 10 | 15 | 20 | 30 | STOP | → | 7 | |||||||
| 41-50 | A | 5 | 10 | 15 | 20 | 30 | 40 | STOP | → | 8 | ||||||
| 51-60 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | STOP | → | 9 | |||||
| 61-70 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | STOP | → | 10 | ||||
| 71-80 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | STOP | → | 11 | |||
| 81-90 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | STOP | → | 12 | ||
| 91-100 | A | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | STOP | → | 13 | |
| 101-110 | A | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | STOP | → | 13 | |
| 111-120 | A | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | STOP | → | 14 |
+ add a guide plate for ease of reference...
-
...once you have picked your colours, add a guide plate choosing one corresponding to the number of colours you are buying. This can then be placed by the windlass or in the anchor locker as a reference when letting out the anchor chain.
-
- Completely customisable as supplied blank for you to insert the colours you are purchasing with the numbers you choose.
- Assembled with a patent-pending push-click system, no tools required.
-
